Products

Standard parts, or the starting point for yours

Everything here is made to order in our own facility, so every part is quoted against the build you actually need. Most customers start from a catalog part and modify it.

Nothing here sits on a shelf. Every part is made to order, which is why you can change almost anything about it. Items marked Standard are configurations we build often. Items marked Custom are specified with you first. Either way the price depends on the build, because substrate, coating, tolerance, and volume all move the number. Configure what you need and we will come back with a real price and a real lead time, from whoever would actually make it.

Fluidic chips

Flow cells and multilayer chips

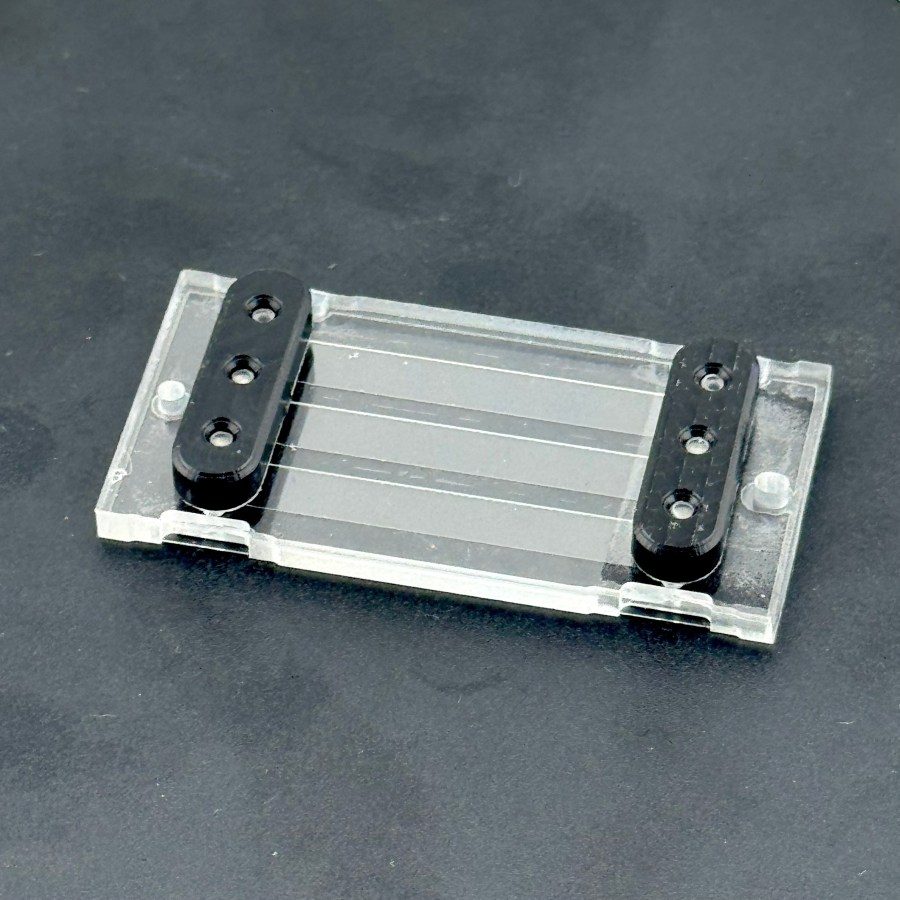

Single-lane flow cell chip with an integrated QuickPort Standard

BNX QuickPort Flow Cell Chip

Single-lane flow cell with an integrated QuickPort. Bare glass throughout, with no surface chemistry applied, so you can coat it yourself or send it back to us for one of ours. Connects to tube, pipette, well, or plug blocks without adhesive or ferrules.

ClickPort chip top Standard

BNX ClickPort Chip Top

Chip top for building or reconfiguring a flow cell against your own substrate.

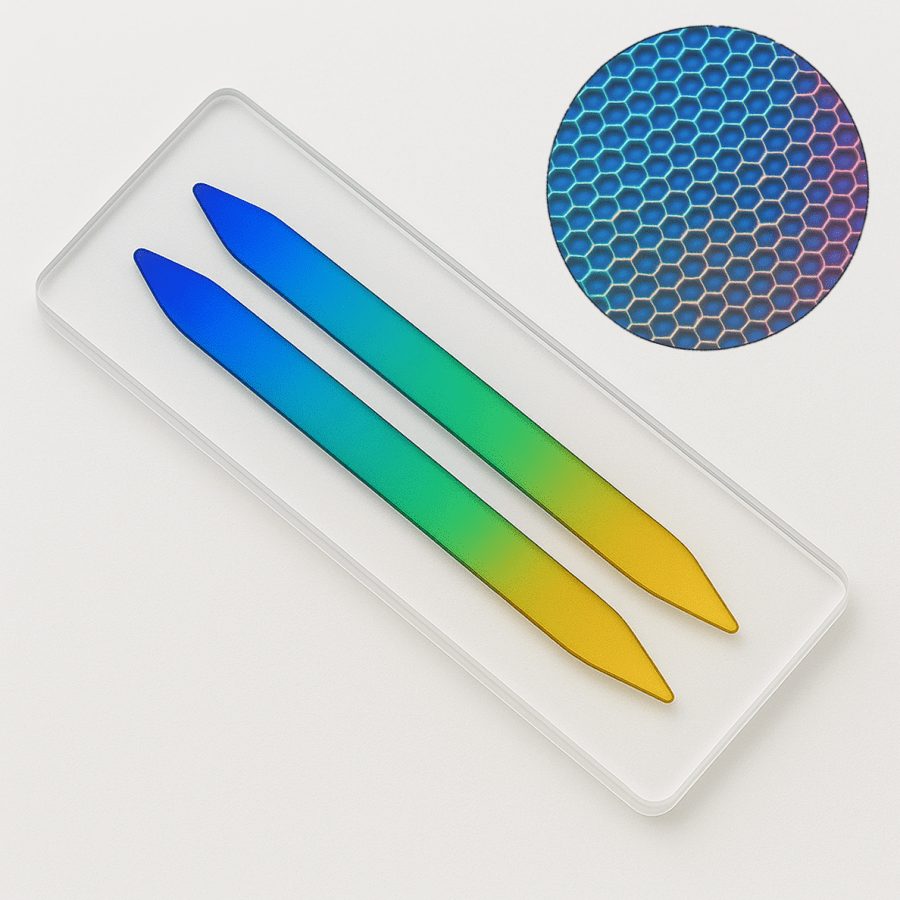

Two-lane flow cell with a hexagonal microwell array Standard

2-Lane Flowcell with Microwell Array

Two-lane format with a hexagonal microwell array. 130µm, 50µm, or 44µm pitch, for trapping arrays of beads or cells.

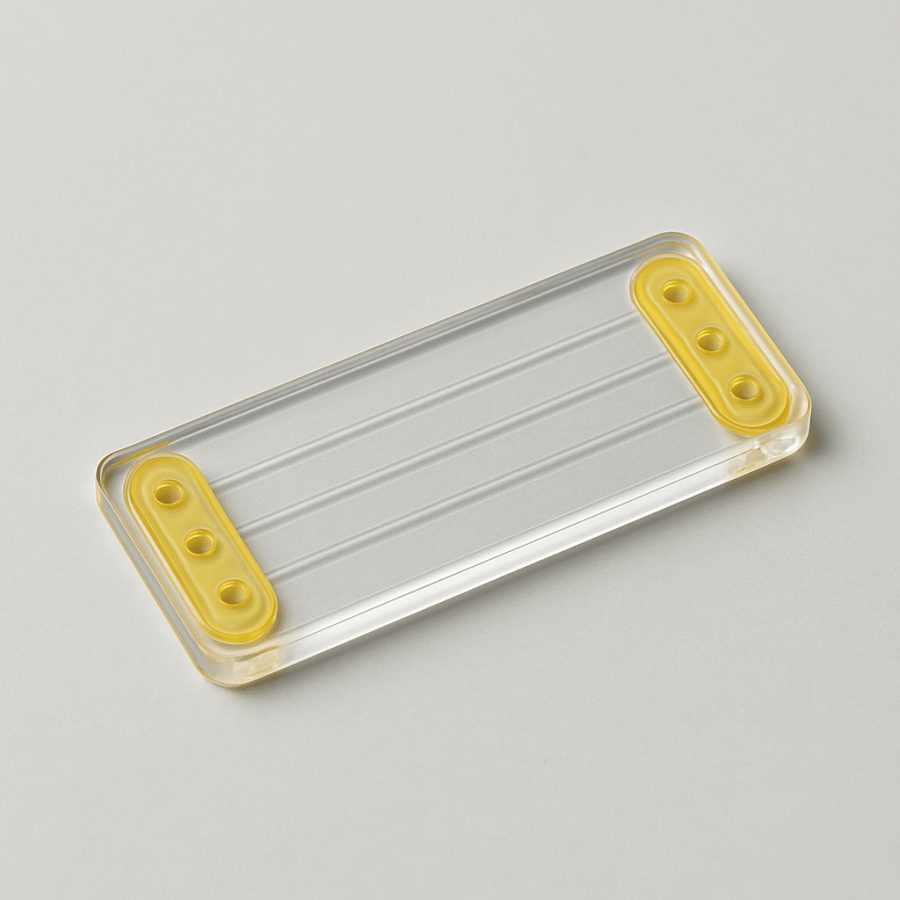

Custom flow cell designs in glass and polymer Custom

Custom Flow Cell

Your geometry, our fabrication. Glass, COC, COP, polycarbonate, acrylic, or PEEK, single or multilayer. Send a drawing, a sketch, or a description of the assay.

Surfaces

Coated substrates and custom chemistry

Developed in our own surface chemistry lab, on your substrate, against your assay.

Amine-coated precision coverglass in its box Standard

Coated Substrate, 2D Amine

High-density amino-functionalized precision surface. Available on coverglass, microscope slide, well plate, or as a 6 × 6 inch glass wafer.

Azide-coated precision coverglass in its box Standard

Coated Substrate, 2D Azide

High-density azido-functionalized precision surface. Available on coverglass, microscope slide, well plate, or as a 6 × 6 inch glass wafer.

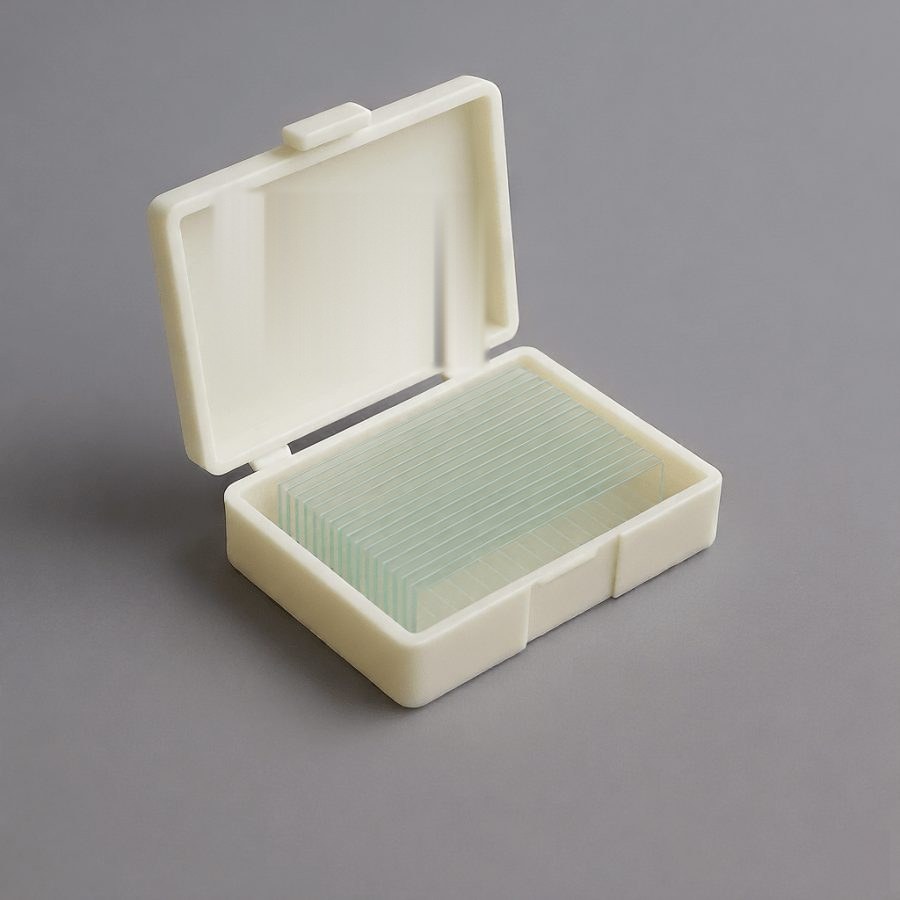

Methacrylate-coated precision coverglass in its box Standard

Coated Substrate, 2D Methacrylate

High-density methacrylate-functionalized precision surface. Available on coverglass, microscope slide, well plate, or as a 6 × 6 inch glass wafer.

Custom

Custom Surface Development

Chemistry developed against your assay, on borosilicate glass (Schott D263M), on a substrate you supply, or on something we work out together. Passivation, capture chemistry, or both on the same part.

Well plates

Ultra-flat microplates

If plate curvature is forcing your scanner to refocus, or putting parts of the field out of focus, flatness is the fix.

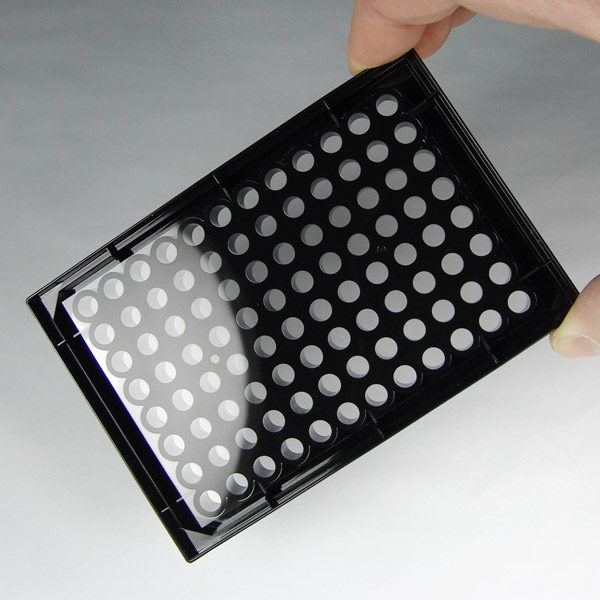

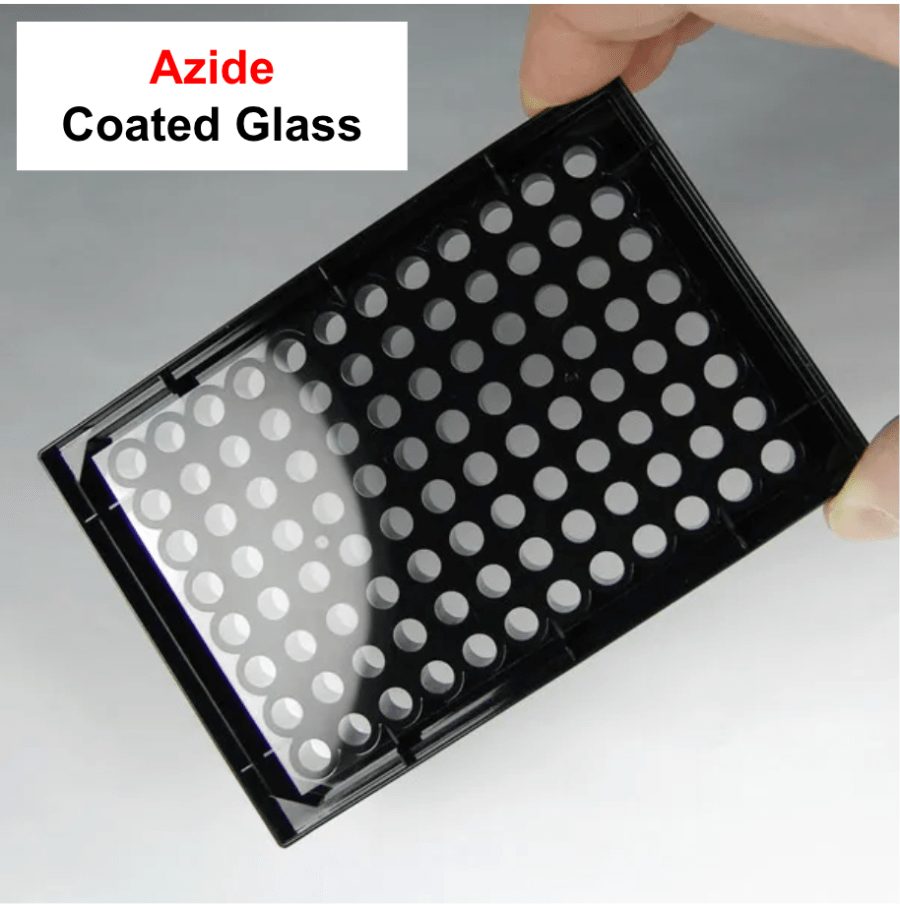

Ultra-flat 96-well plate, glass bottom Standard

BNX Ultra-Flat 96-Well Plate

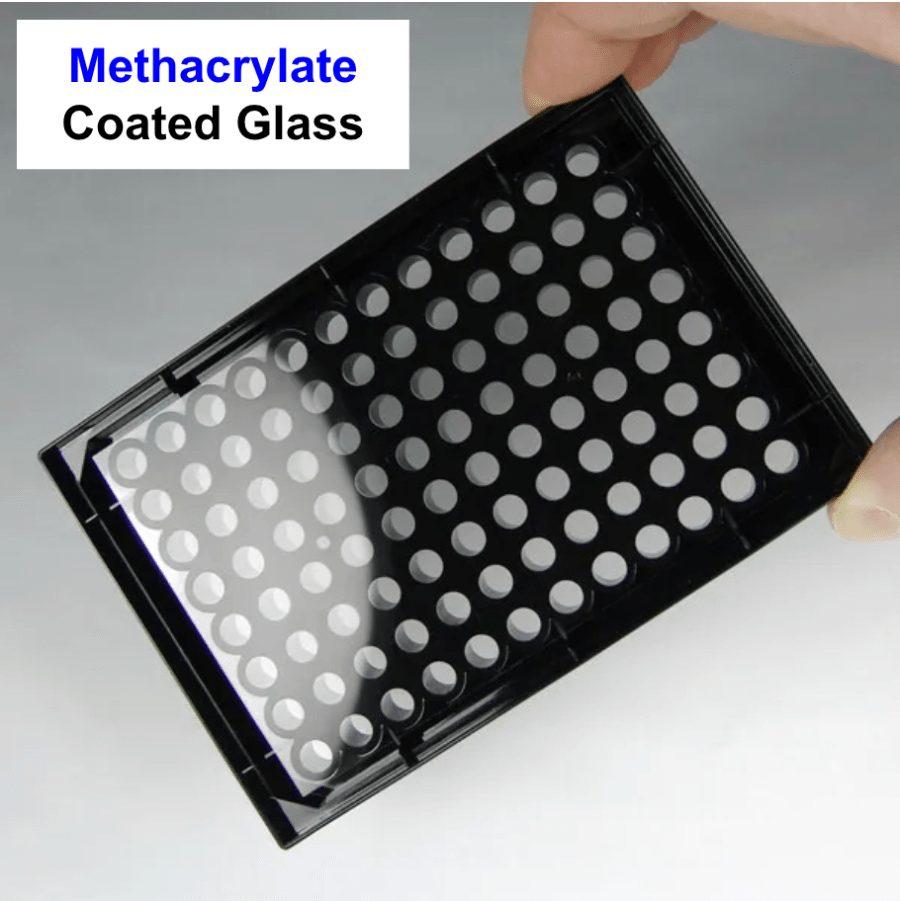

50µm total peak-to-valley flatness across a full 96-well plate, on Schott Nexterion glass. Supplied bare, or with an amine, azide, or methacrylate surface applied.

Ultra-flat 96-well plate, the basis for custom formats Custom

Custom Plate Format

Non-standard well counts, depths, or footprints, with or without a surface chemistry applied.

Connectors

Chip-to-world interfaces

One universal port on a chip, connected to whatever the workflow needs: tubes, pipettes, wells, or a plug for storage. Snap and flow.

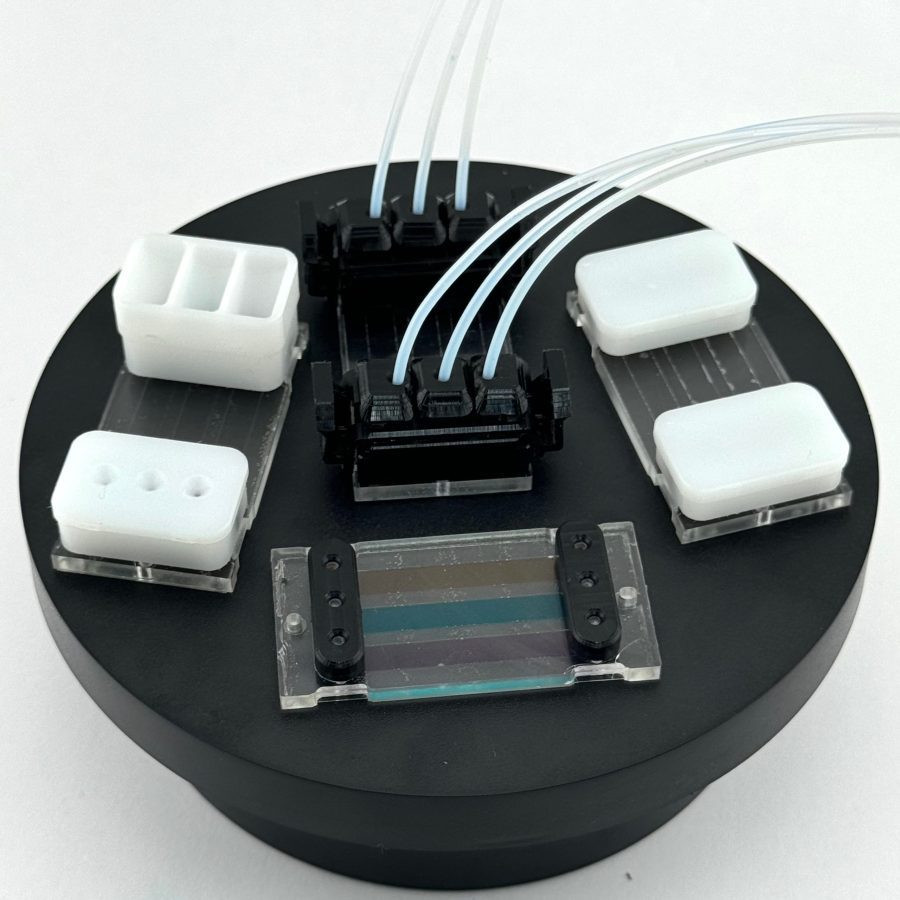

QuickPort starter kit contents laid out Standard

QuickPort Starter Kit

Two microfluidic chips, two chip tops, and two each of the tube, well, pipette, and plug blocks. Available with a 24 × 50mm or 25 × 75mm bottom, bare or with a surface chemistry applied.

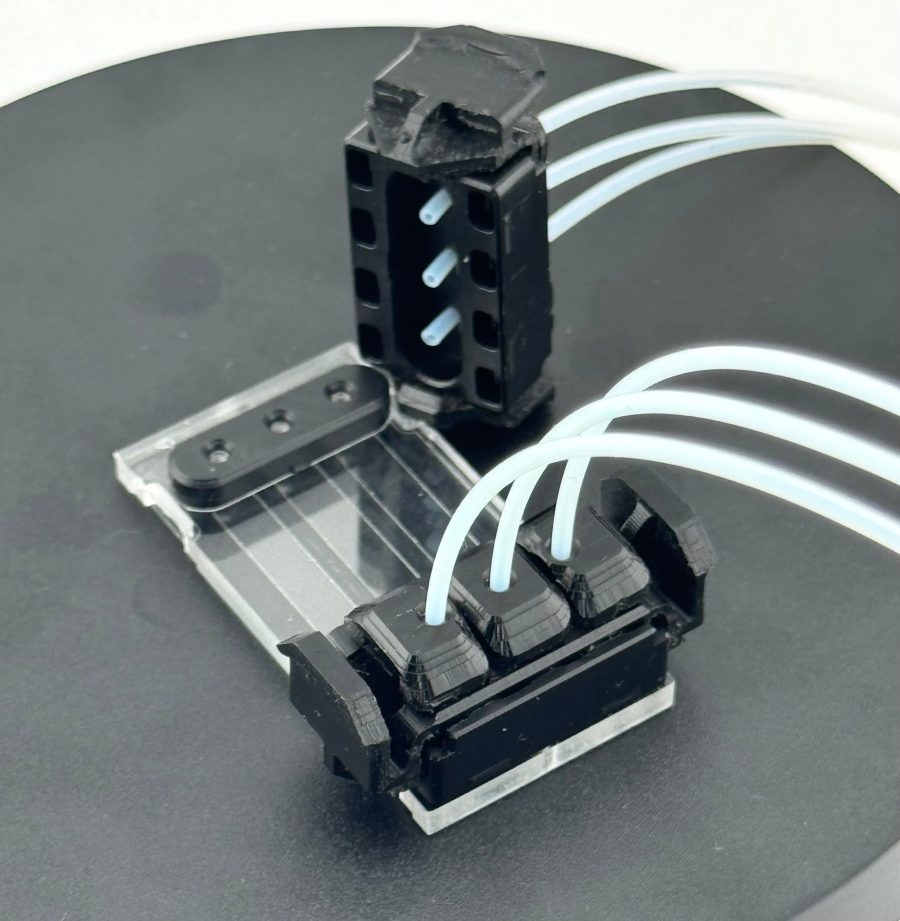

QuickPort tube block connected to tubing Standard

BNX QuickPort Tube Block

Snap-fit tubing interface. Reusable, no adhesive, no ferrules.

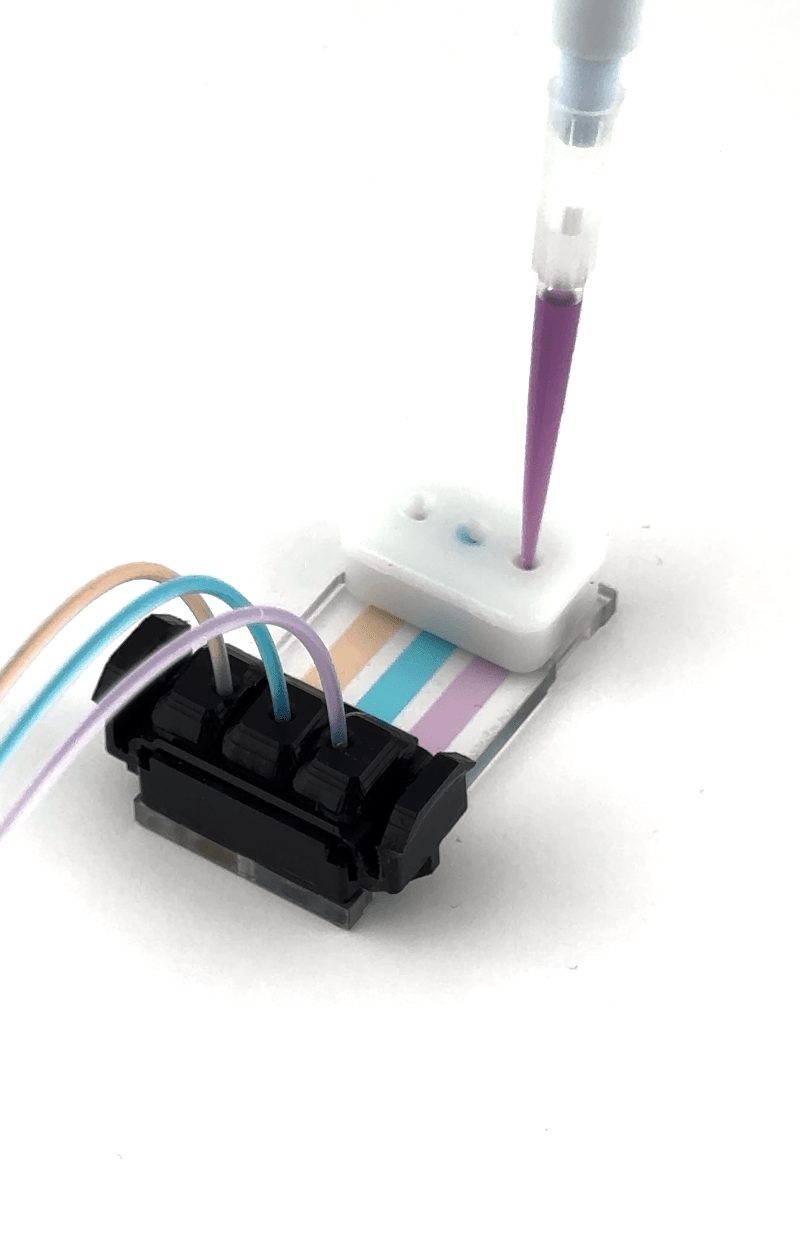

QuickPort pipette block Standard

BNX QuickPort Pipette Block

Direct pipette-to-chip interface for manual and automated liquid handling.

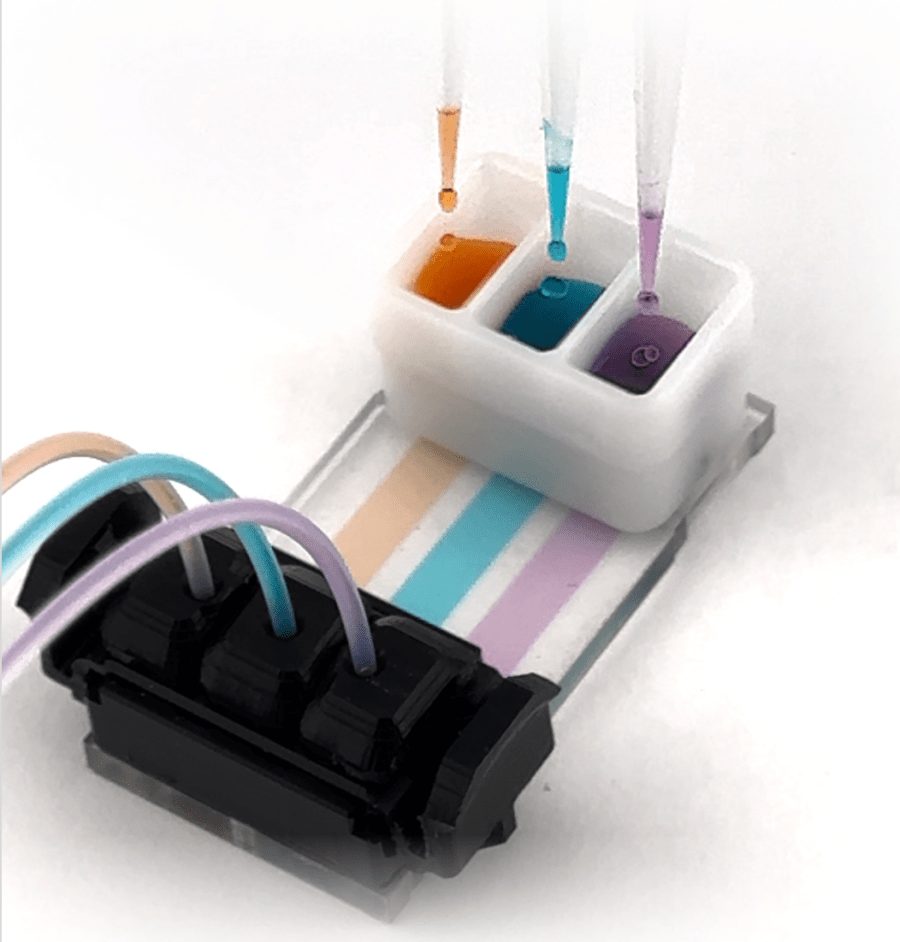

QuickPort well block acting as an open reservoir Standard

BNX QuickPort Well Block

Open reservoir for larger volumes on-chip.

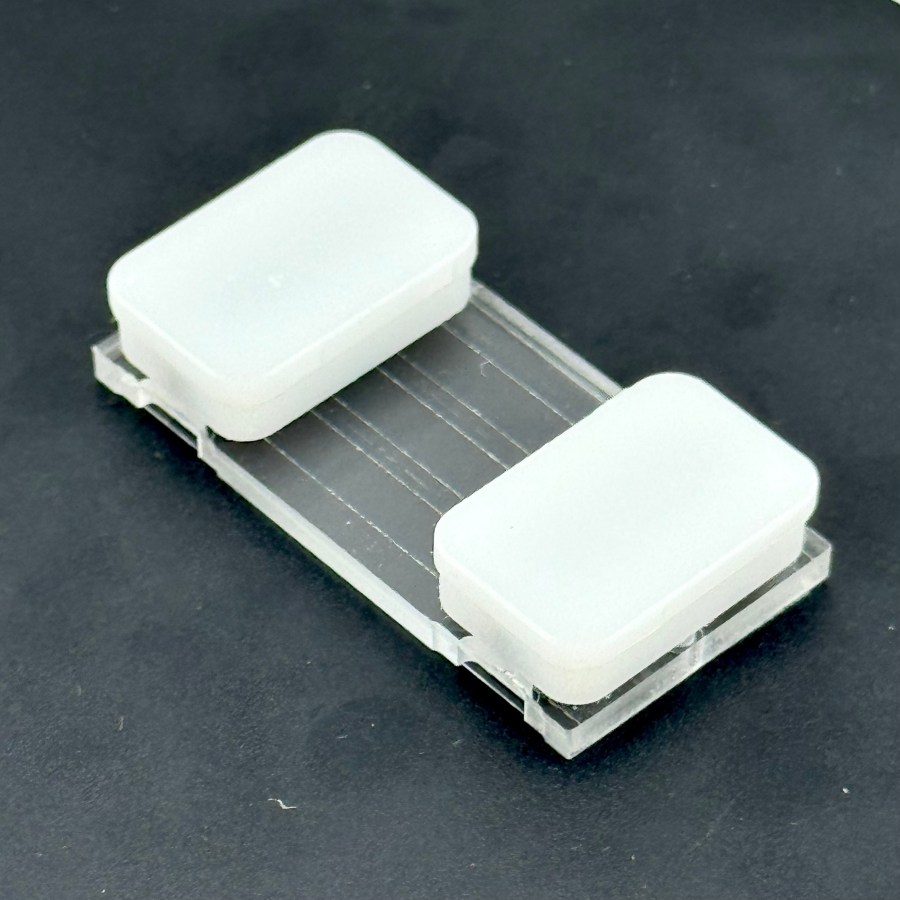

QuickPort plug block sealing a port Standard

BNX QuickPort Plug Block

Seals a port for shipping and storage.

QuickPort connector block, the basis for custom interfaces Custom

Custom Connector

Interfaces designed against your instrument, including manifolds routing multiple channels into a single connection.

Let's build something together

Quick-turn proof of concept, or an end-to-end product. Tell us what you need to make.
